First Motherboard Mini ITX With Socket AM4 !




teknolozienewbie.blogspot.com







Had plans to assemble a computer with AMD processor series Ryzen But wait, because you also have to glance at the mini motherboard that supports the processor. Recently appeared glimpse of the mini-ITX motherboard manufacturer BIOSTAR's latest AM4 is X370GTN.

In contrast to the presence of ranks of mini-ITX motherboard AM4 are generally often using A300 or X300 chipset, BIOSTAR X370GTN this time it comes with crammed X370 chipset. This of course is one of the breakthroughs and innovations brave newly presented by BIOSTAR. In terms of graphics support and additional storage, the motherboard was equipped with a PCIe 3.0 x16 slot, four SATA 6Gbps connectors and an M.2 slot. In addition to a standard Realtek gigabit ethernet LAN controller and the absence of WiFi for network support, X370GTN motherboard also appears to have an integrated audio solution based on separate circuits to support 8-channel Realtek ALC892 high definition




I / O Internal include:
1 x USB 3.1 Header Gen1
1 x USB 2.0 Header
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
2 x 5050 LED Header

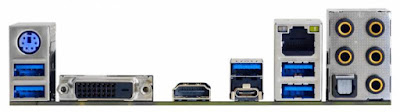

I / O includes: 1 x PS / 2
1 x USB 3.1 Type-C Gen2 Port
1 x USB 3.1 port Gen2
4 x USB 3.1 Port Gen1
1 x HDMI Connector, resolution up to 4096 x 2160 @ 24Hz or 3840 x 2160 @ 30Hz
1 x DVI-D Connector, resolution up to 1920 x 1200 @ 60Hz
1 x RJ-45 Port 5 x Audio Connector
1 x S / PDIF Out Port
